artos Terroir
The artos Terroir post has external hooks spaced at a distance of 70 mm. These are placed along the whole length of the posts. These posts have been specially designed for lower vineyard trellises.
Due to the shape of the profile and the different steel thicknesses available, the post ensures stability and good seating in the ground.
For sloping or undulating ground, every fifth post should be installed with the hooks facing downwards. This will enable the wires to be held correctly in place and avoid the wire jumping out of the hooks.
Product range
| Material thickness / Weight per metre | Hot Dipped Galvanised | Strip Galvanised / zinc magnesium | Weathering steel |
|---|---|---|---|
| 1,60 mm/0,92 kg 1,90 mm/1,10 kg 2,10 mm/1,35 kg |
1,50 mm/0,86 kg 1,80 mm/1,03 kg 2,00 mm/1,15 kg |
1,80 mm/1,03 kg 2,00 mm/1,15 kg |
| Standard lengths | 1300 - 1600 mm |
|---|---|
| Coil width | 73 mm |
| Coating | Hot Dipped Galvanised (HDG), Strip Galvanised (SG), Weathering steel (C-Type) |
| Hook type | External, 70 mm spacing |
Dimensions
Recommended installation depth
| Post length (mm) | Recommended installation depth (mm) |
|---|---|
| 1300 - 1400 | 500 |
| 1500 - 1600 | 600 |

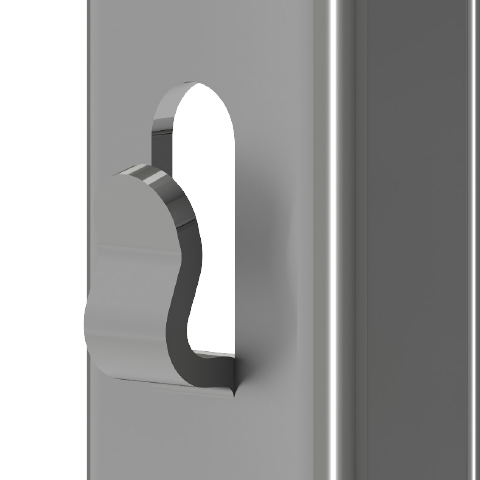

artos Terroir hook type
